HSRX

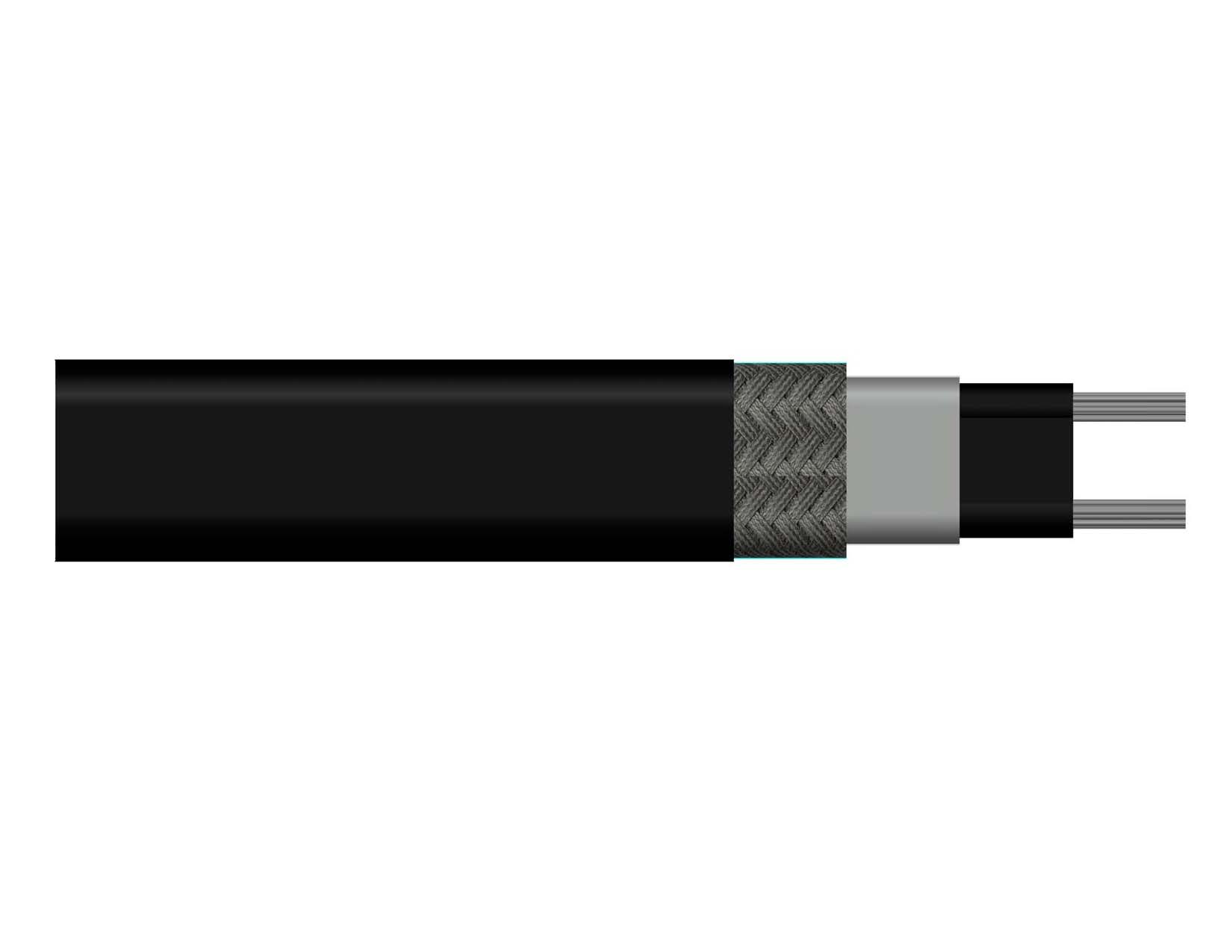

The HSRX Self-Regulating Heating Cable is designed for freeze protection and high process temperature maintenance of metal and non-metal pipes, vessels, and equipment where steam cleaning is required. The unique PTC feature of HSRX self-regulating core elements adjusts its heat output in response to the surrounding temperature along the entire circuit, delivering more heat where and when required. This self-regulating feature also serves to prevent overheating, even in cases where HSRX cables overlap. Another benefit of the cable is the ability to cut to length in the field, completed with Indeeco system connection kits for quick and convenient installations.
HSRX heating cable system is certified for ordinary and hazardous areas with maximum maintain temperature of 300°F (150°C) and intermittent exposure temperature of 482°F (250°C). Use of Indeeco connection kits for HSRX installation is required to comply with system approval, ensuring safe operation and reliable thermal performance.
Approvals
Specifications
Max. Intermittent Exposure Temp.
- 482°F (250°C)
Max. Maintain or Continuous Exposure Temp.
- 300°F (150°C)
Supply Voltage
- 120V or 208 – 277V
Output Wattage
- 5, 10, 15, 20W/ft @50°F (16, 33, 49, 66W/m @10°C)
Bus wire
- 16 AWG
Min. Bending Radius
- 0.8″ @70°F (20mm @20°C), 1.8″ @-76°F (45mm @-60°C)
Specifications
Min. Installation Temperature
- -76°F (-60°C)
Min. Start-up Temperature
- -40°F (-40°C)
Max. Circuit Breaker Size
- 50A
Outer Jacket Color
- Red
Heating Cable Dimensions (Nominal)
- 0.50″ x 0.20″ (13.0mm x 5.0mm)
Heating Cable Weight
- 0.0902lb/ft (0.134kg/m)
