Industrial Controls and Monitoring
PART NUMBER: HTCTRLUNIT-5; HTCTLRUNIT-10; HTCTRLRUNIT-X
DESCRIPTION: Master Trace multi-circuit temperature
control panel 30 amp switching current SSR, 280 V max
Class I, Division 2, Group A,B,C,D
Ground fault current alarm and trip
Alarm and communication capabilities
5 circuit (-5), 10 circuit (-10), custom circuit quantity (-X)
PART NUMBER: HTCTRLR-1, HTCTRLR-2
DESCRIPTION: Heat trace microprocessor temperature controller
30 amp switching current SSR, 85-280 V
Class I, Division 2, Group B,C,D
Ground fault current alarm and trip
Alarm and communication capabilities
Single (-1) and dual circuit (-2)

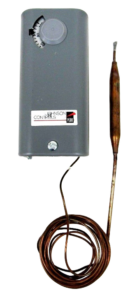

PART NUMBER: 1023953
DESCRIPTION: Single Stage Heavy duty Thermostat
Liquid filled sensing element with snap-acting contacts
Range: -300 to 1000 F
Differential: 3 to 120 F between stages
Bulb Dimensions: 3/8” x 4”
Capillary Length: 8”
Resistive Rating: 22 amps, 120 to 277 volts

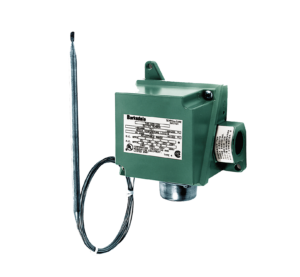

PART NUMBER: HTTS-A; HTTS-L
DESCRIPTION: Mechanical thermostat
22 amp switching current SPDT, 120/250/480 V
Non-hazardous area
HTTS-A: ambient sensing
HTTS-L: line sensing

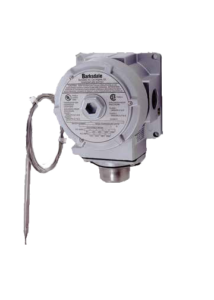

PART NUMBER: HTTS-EPA; HTTS-EPL
DESCRIPTION: Mechanical thermostat
22 amp switching current SPDT, 120/250/480 V
Class I, Division 1 and 2, Group B,C,D
HTTS-EPA: ambient sensing
HTTS-EPL: line sensing

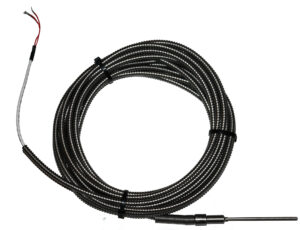

PART NUMBER: HTRTD-25
DESCRIPTION: Armored RTD cable and cord grip with 25’ leads
