Electronic Controls
MasterTrace Heat Tracing Systems are designed to be the very best in electrical heat trace control and monitoring for industrial applications.
Approvals
MasterTrace Heat Tracing System
TraceCheck™ Early Warning
Alerts operators to problems even when the circuit is not in use.
Modbus® Protocol
Allows easy interfacing with our MC-100 software or PLC and DCS systems.
Alarm Outputs
Common alarm alerts users to problems.
Centralized Interfacing
No need to move around the plant. All variables are monitored at a single location.
Statistics Monitoring
Save energy by monitoring peak demand times.
Staggerstart
Limits initial start up power.
Proportional Control
Provides tight process temperature control.

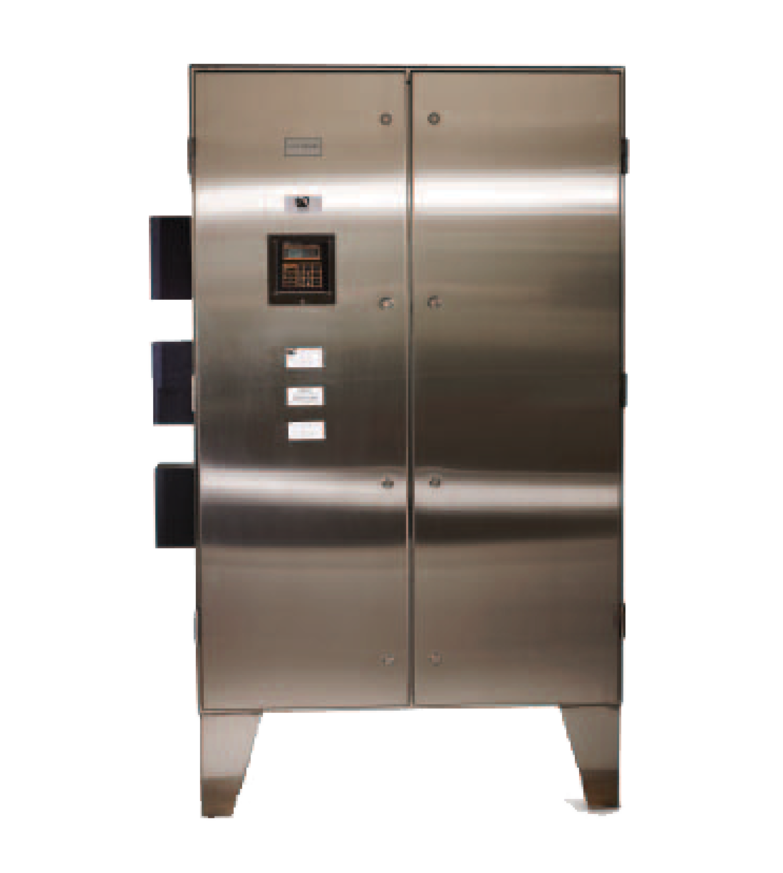

Custom engineered control panels
Easy to read Interface, 2×16-character alphanumeric display, field mounted or remote mounted
Modbus® communication
RS 485 serial port connections
TraceCheck™ early warning system
Power limiting
Load shedding
Solid state or mechanical switching units
Plant wide Windows-based monitoring software
Links to PLC’s or DCS
Custom engineered software designs
TraceMate™ Series Heat Trace Controllers
Early Warning
TraceCheck™
Alarm status indicators
Separate fail-safe alarms, local and remote
System Fault Alarm Package
Remote Monitoring
Form C alarm dry contact output for digital alarm interface
Available in:
120 VAC
208-240 VAC
277 VAC
Hazardous or Non-Hazardous Area Usage
Built-in Ground Fault
RTD Included
Low Installed Cost
2-Circuit Monitoring and Control
2 RTD Sensors (included)
Liquid Crystal Display (LCD)
Early Warning System
TraceCheck™
Alarm status indicators
Separate fail-safe alarms, local and remote
System Fault Alarm Package
Compatible for Laptop Programming

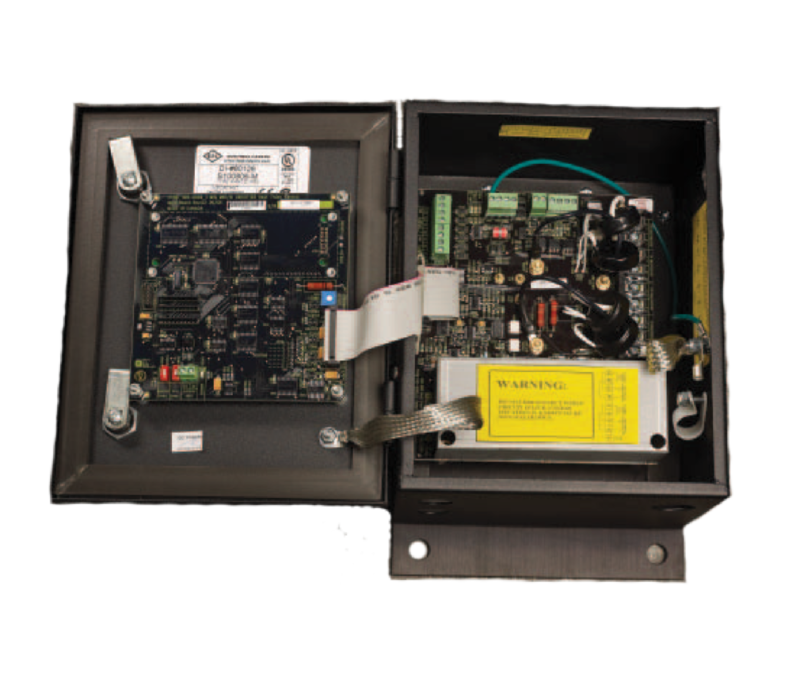

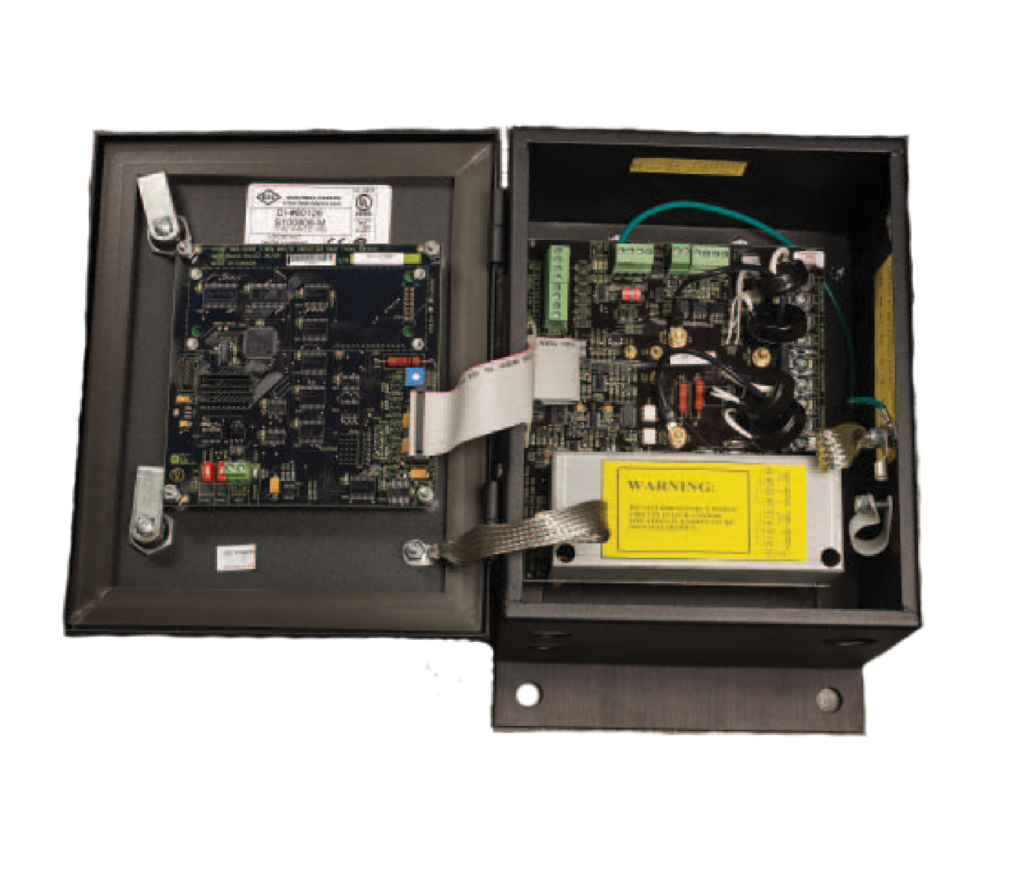

MS-2100 Series Heat Trace Controllers
The Best in Advanced Control
Nextron’s MS-2100 Series controllers continuously monitor all important heat trace variables:
- temperature
- heater current
- voltage
- ground fault levels
Detecting and alerting operators of potential problems before they occur avoiding costly frozen pipes or process problems.
MS-2100 Series controllers log minimum and maximum values and energy usage providing an opportunity for operators to recognize energy savings in the plant.
