Temperature Switch Series THR, THL

High accuracy

Line or ambient sensing

NEMA 4X & IP 65

UL, CSA and CE approved

Type
Single Pole Double Throw, Prewired Snap Acting

Rating
22 amps, 120-480 Volts

Connection
¾” NPT Fitting

Terminals
3 Pole 10-14 AWG

Enclosure
NEMA 4X

Bulb/ Cap
5/16” x 7-3/4” / 10’, 316L SST

Area Class
Ordinary Area Only

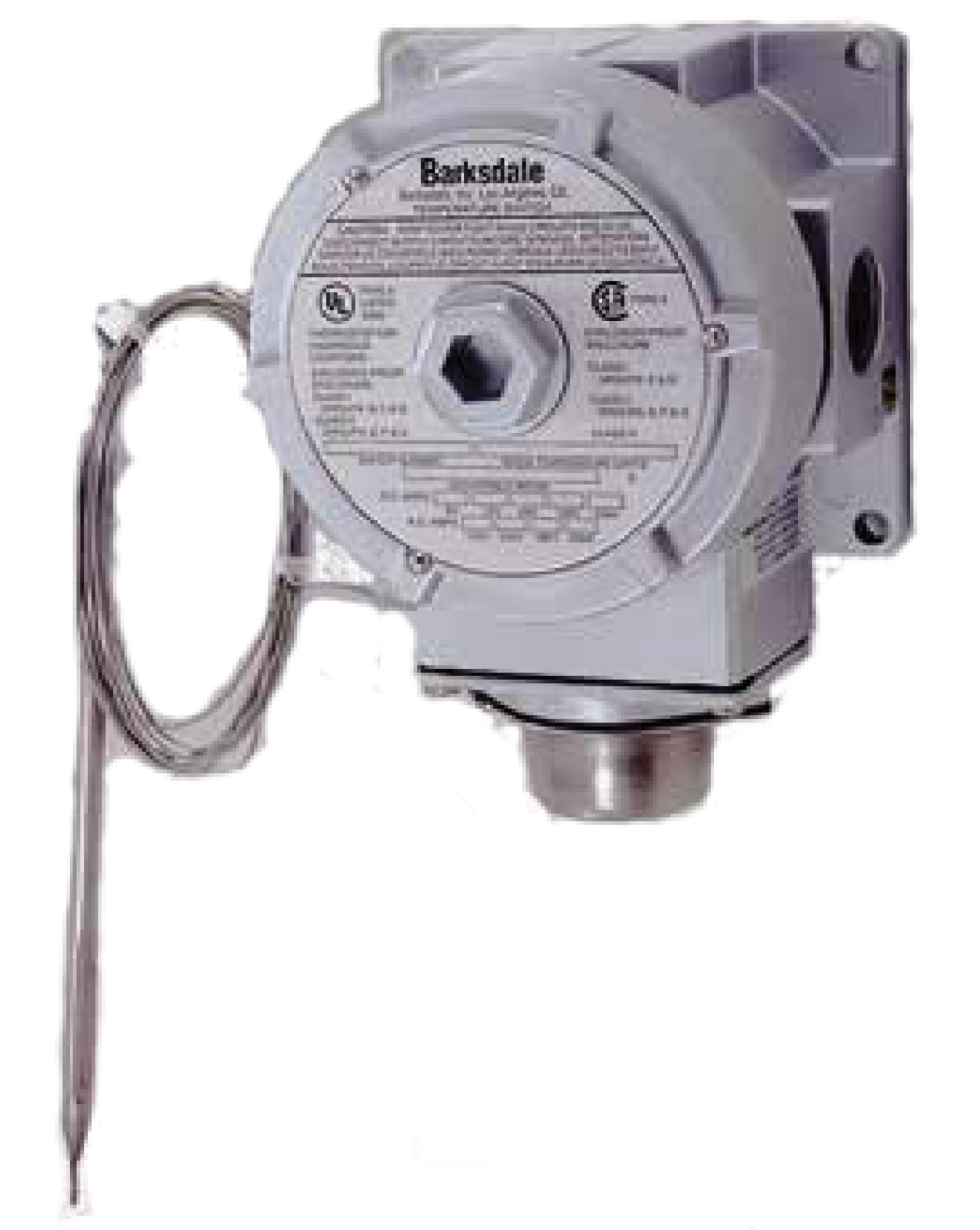

Explosion Proof Temperature Switch Series TXR, TXL

Explosion-proof

High accuracy

Line or ambient sensing

UL, CSA & ATEX approved

Type
Single Pole Double Throw, Prewired Snap Acting

Rating
22 amps, 120-480 Volts

Connection
¾” NPT Fitting

Terminals
3 Pole 10-16 AWG

Enclosure
NEMA 4, 7, 9, IP65

Bulb/ Cap
5/16” x 8” / 10’, 316L SST

Area Class
Division 1 & 2, Zone II
